ADFS (SAML) Integration

This guide for integrating auth of ADFS Active Directory users to Infoshield. This document outlines the steps and considerations for a seamless integration process.

Note :

This integration only initiates authentication and doesn't automatically withdraw users. Therefore, it must be uploaded users manually beforehand. Subsequently, their login method will be converted to Single Sign-On (SSO) as part of the process.

SAML Authentication - Requirements and Steps:

          Helpful videos to this step part1 part2 for ADFS team

By following these steps, you will successfully integrate the metadata from the IDP ADFS into the LMS system :

1. Log in to the LMS dashboard as admin.

2. Navigate to the "Users" section.

3. Select "ADFS / SAML2" from the options.

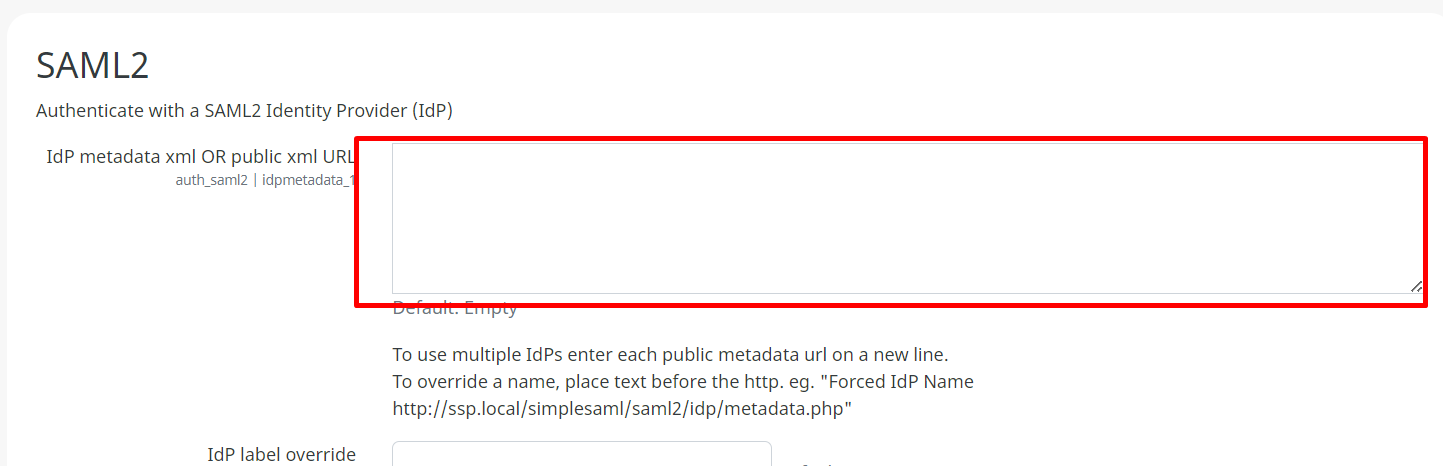

4 Paste the metadata into the designated field.

6. Save the changes

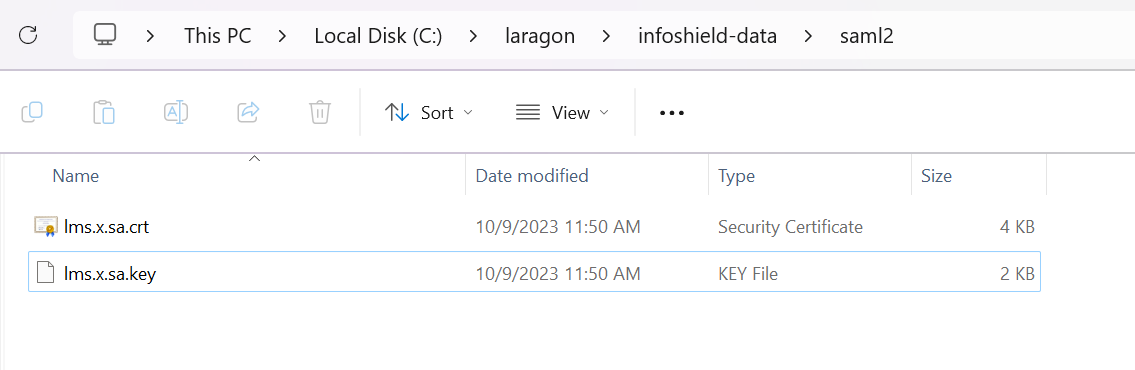

Place the certificate and key of the web domain in the specified path within the source code:

    C:\laragon\infoshield-data\saml2

After completing the initial steps, proceed to the LMS Infoshield platform to download the    Infoshield metadata

Dashboard > users > SAML / ADFS then appears download filed here after putting ADFS metadata

          Helpful videos to this step part1 part2 for ADFS team

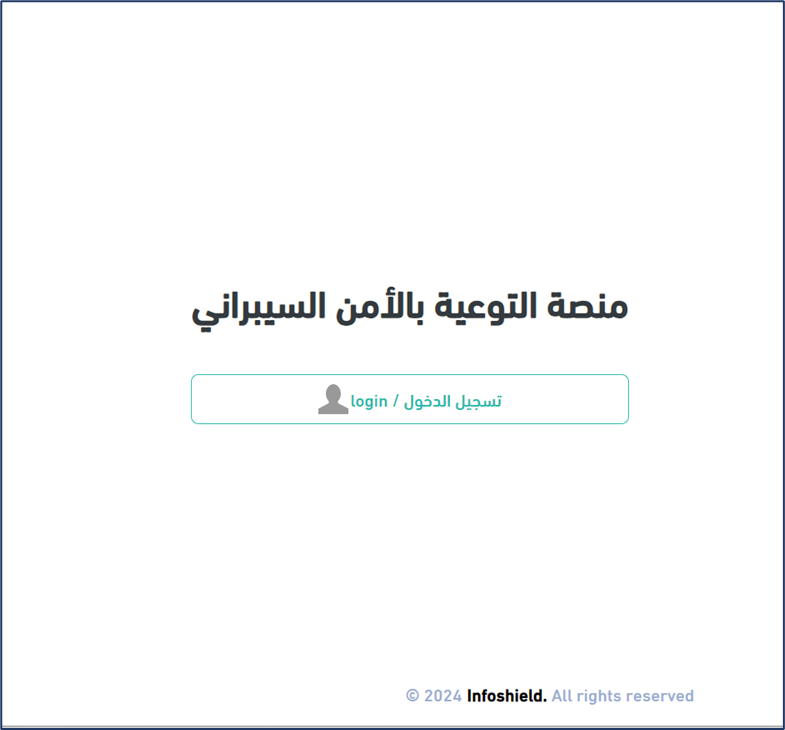

After completing the outlined steps, the SAML authentication process will be active on the Login page. Users will be able to authenticate using SAML credentials for accessing the system.
